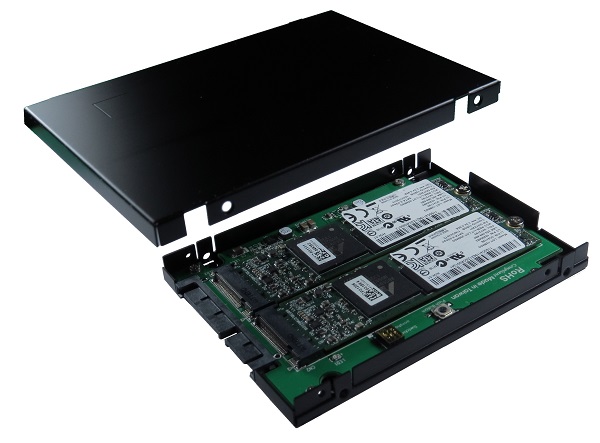

Standard 2.5", 9.5mm(H) Form Factor
Support a SATA host & two M.2 NGFF SSD devices
Built-in ASM1092R high performance processor
RAID mode switch by hardware strapping or GUI controller
RAID mode: RAID 0(fast) / RAID 1(safe) / JBOD(volume)
3-button Hardware switch to setup RAID mode
Green LED indicate SATA 3 host active
Red LED indicate M.2 NGFF SSD error
Support SATA Reversion 3.2
Compliant with PCI Express M.2 Spec. Version 1.0
Support SFF-8201 for Form Factor of 2.5" Disk Drives
PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
 SSD.jpg){kind=small}
- Intel 530 Series M.2 SSD & compatible Storage
- Sandisk X110 M.2 SSD & compatible Storage
- Micron M500 Series M.2 SSD & compatible Storage
Datasheet Download :
R2036F.PDF
Test report Download :
R2036F RAID 0 test report
R2036F RAID 1 test report
assembly guide Download :
