Datasheet

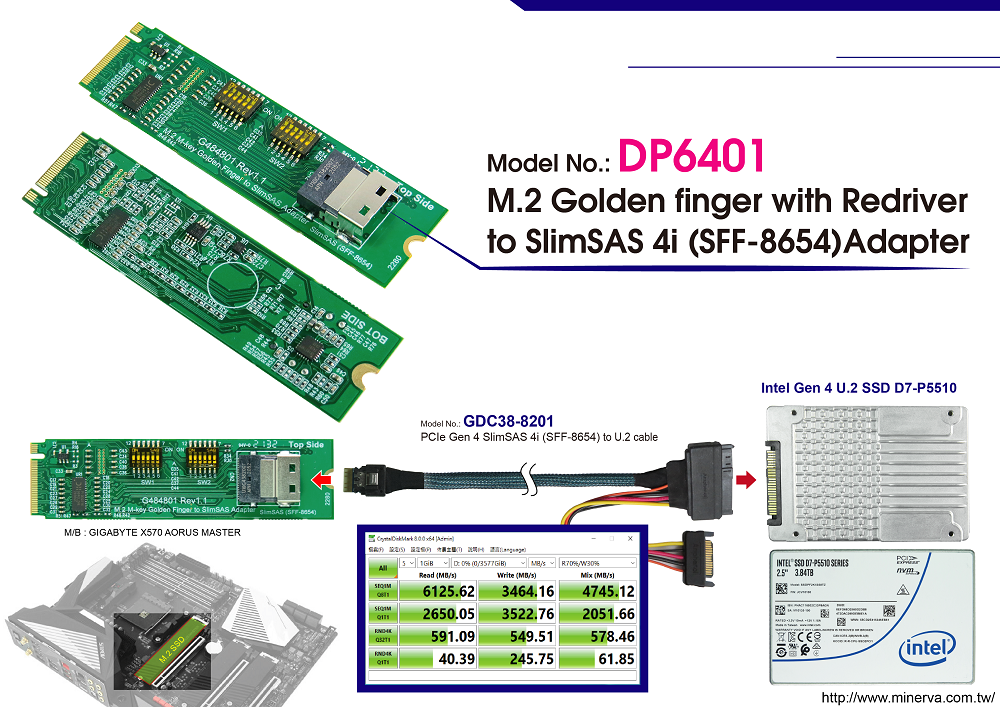

DP6401 + SlimSAS to U.2 cable + U.2 SSD Test report
DP6401 + SlimSAS to U.2 cable + GD1401A + M.2 SSD Test report
DP6401 + SlimSAS cable + GD2409A + M.2 SSD Test report
DP6401 + SlimSAS to OCulink cable + GD3404G + U.2 SSD Test report
2D drawing

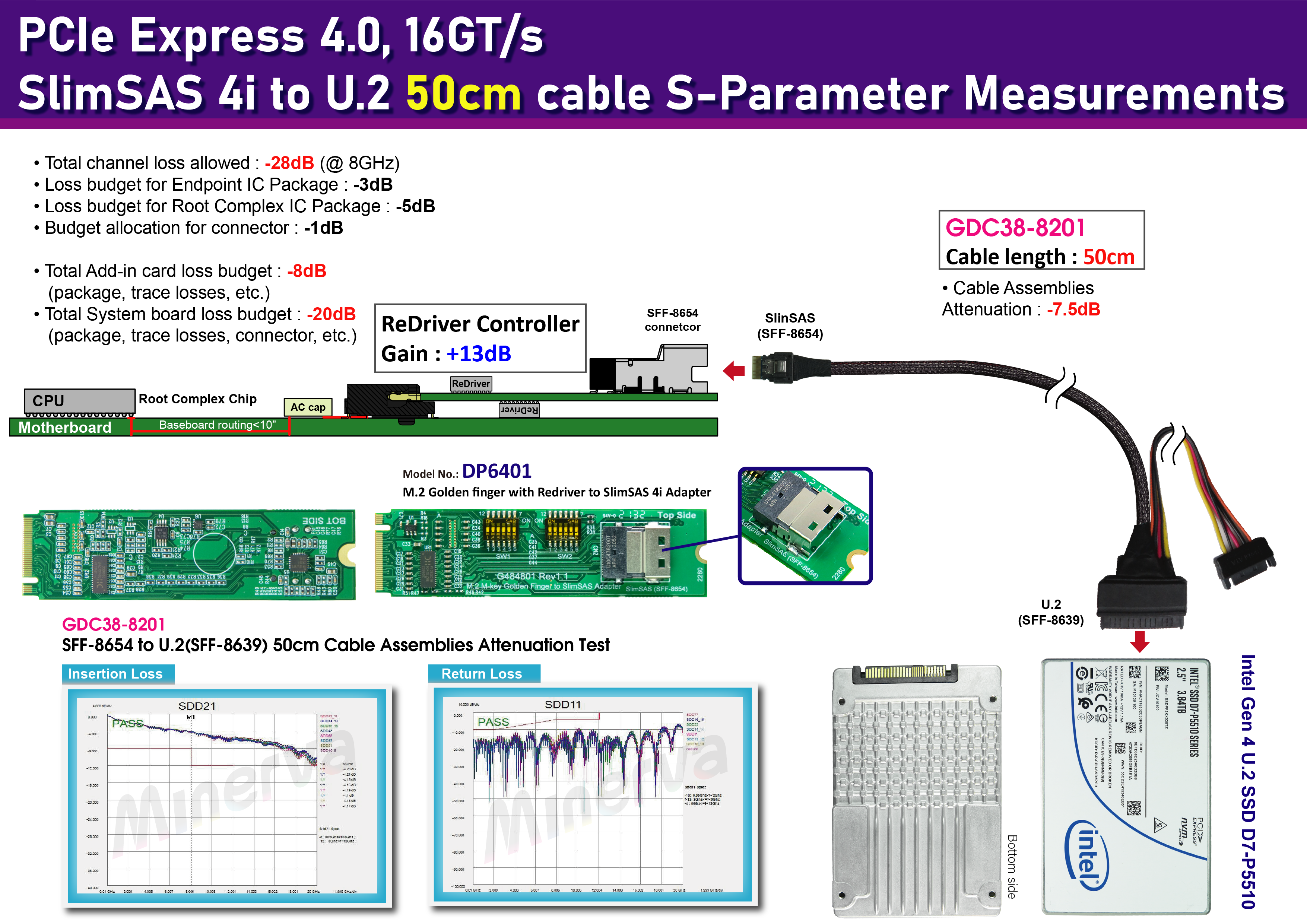

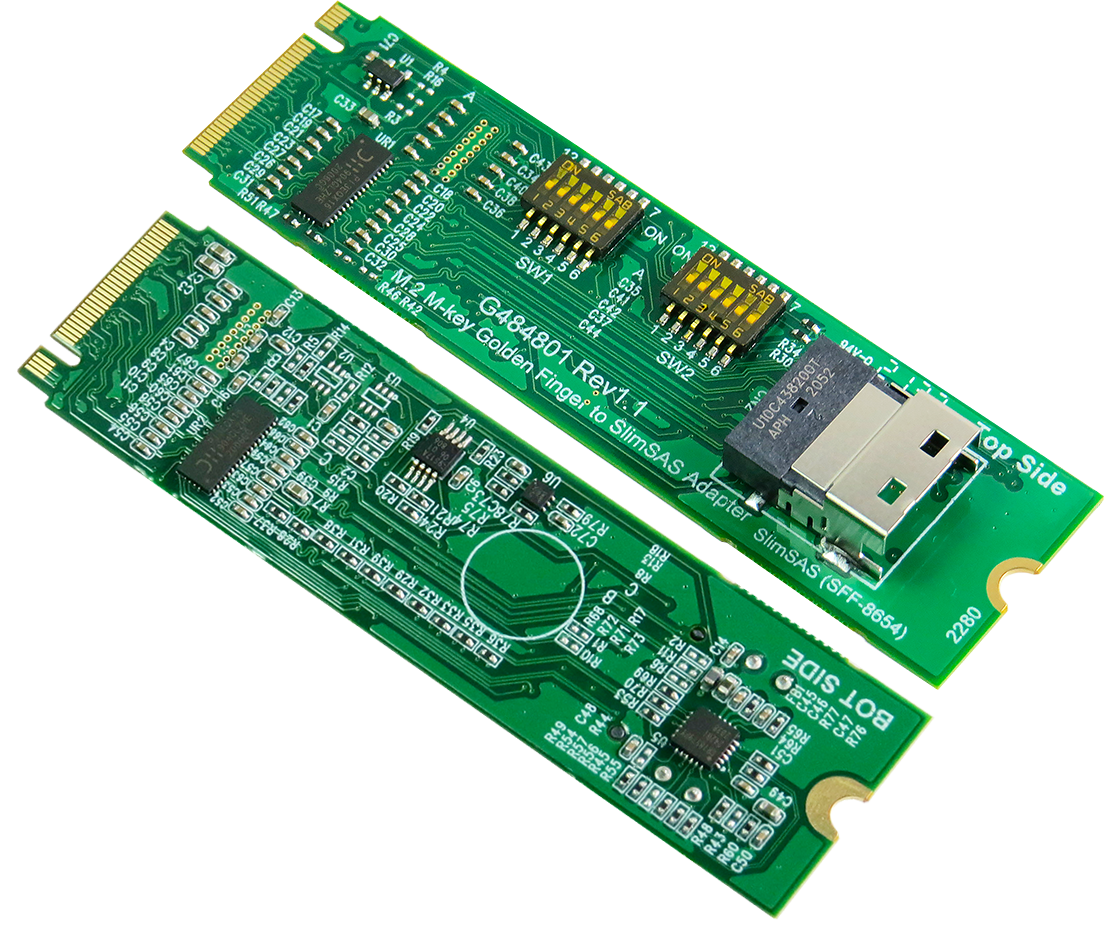

- SlimSAS 4i (SFF-8654) to PCI Express 4.0 convert
- Built- in SFF-8654 connector, pin-out defined by SFF-9402 Rev1.1

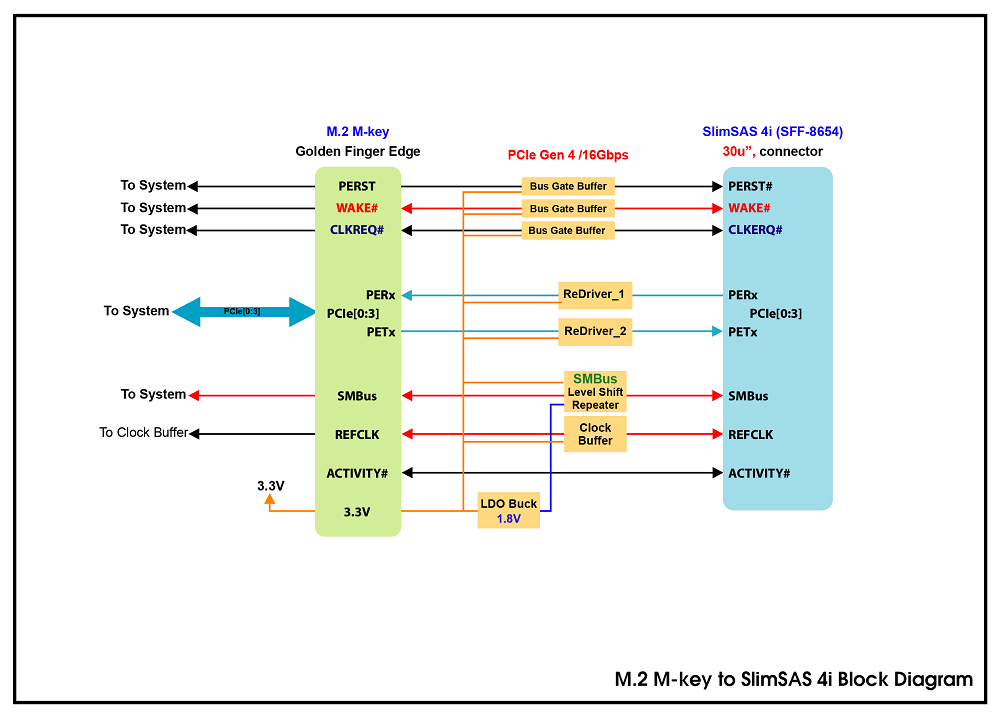

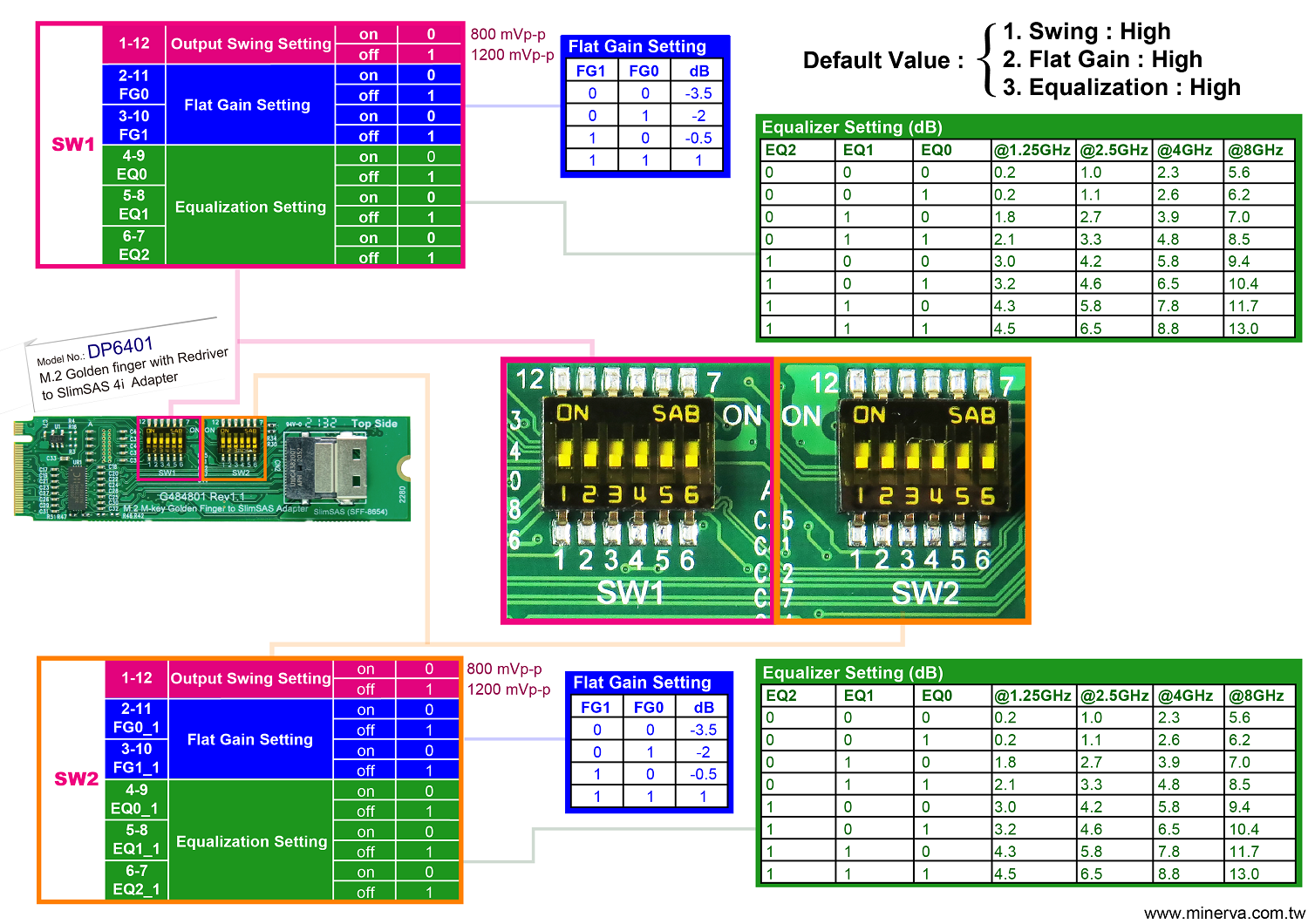

- Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
- Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
- Built- in SMBCLK, SMBDAT bidirectional buffer repeater and level shift
- Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
