CB963Fx9

CB963Fx9





CB963Fx9CB963Fx9CB963Fx9



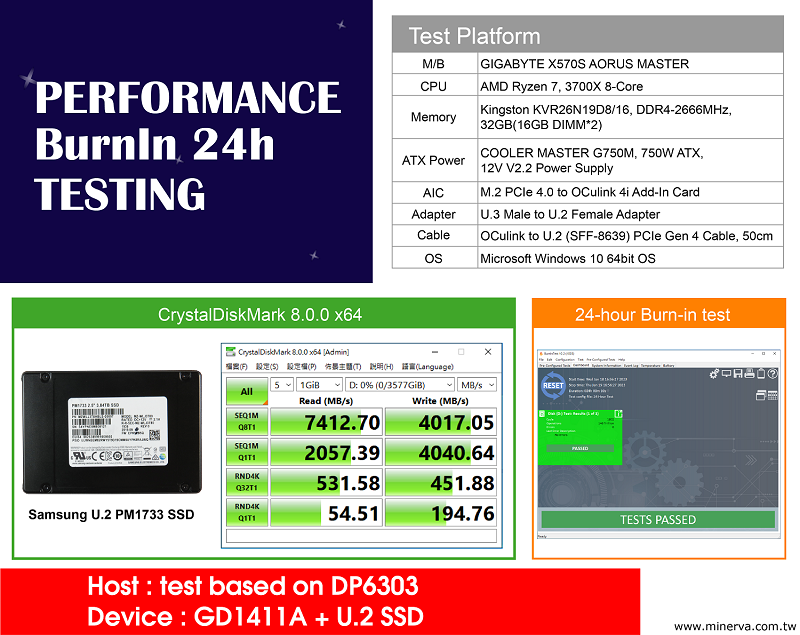

specifications

PDF

Datasheet

PDF

2D drawing









specifications

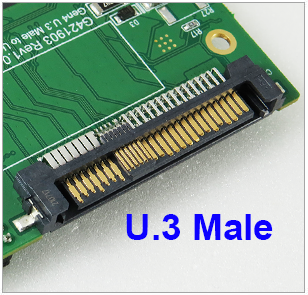

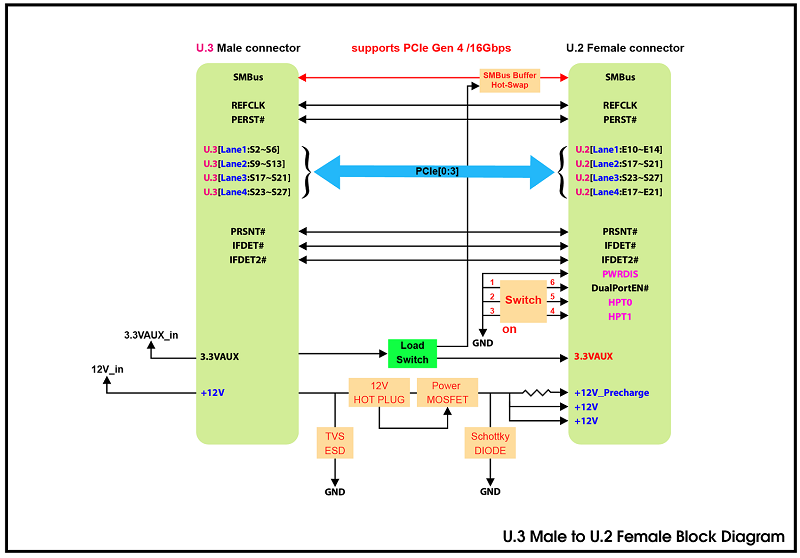

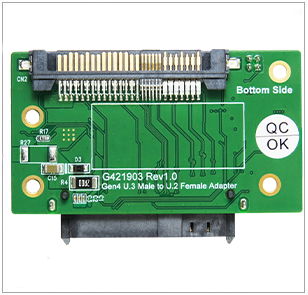

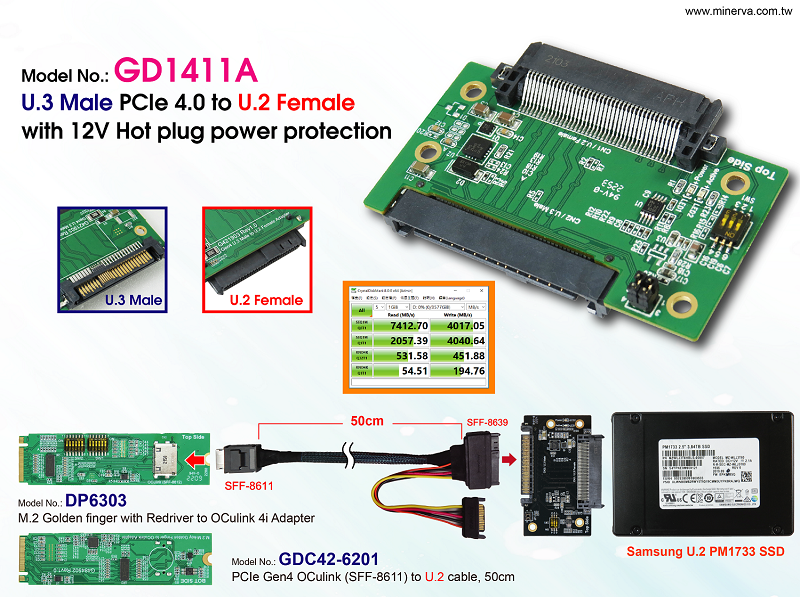

  • Built-in SFF-8639 Male connector

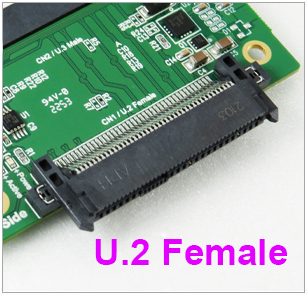

  • Built-in SFF-8639 Female connector
  • Built-in 12V Hot Plug Power with eFuse protection for U.2 NVMe SSD
  • ◆ Programmable Current Limit: 6.5A
  • ◆ Programmable Inrush Current Slew Rate
  • ◆ Thermal shutdown protection and fault alert
  • ◆ Back-to-Back (B2B) FET Operation
  • Built-in 12V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
  • Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
  • Built-in 12V output with SCHOTTKY BARRIER Power Rectifier
  • Built-in 3.3VAUX Load Switch with controlled turn on, can support a maximun continuous current of 500mA

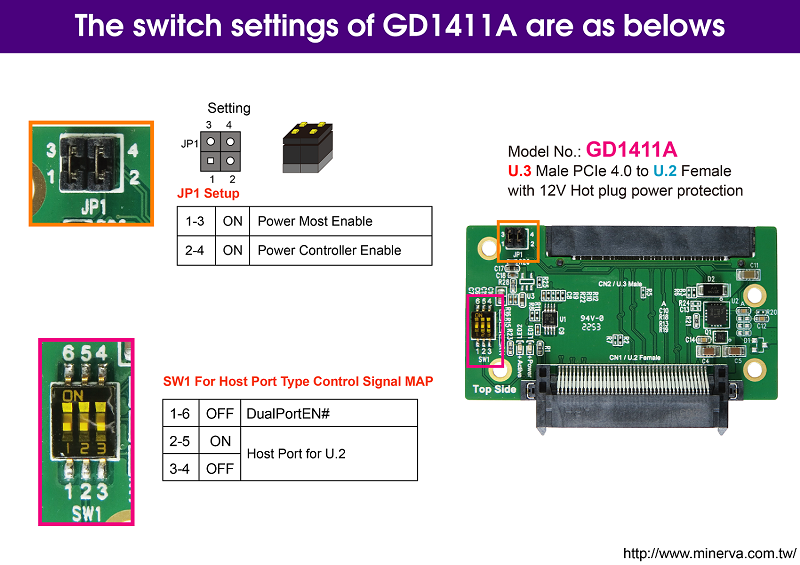

  • Supports CLKREQ#, WAKE#, PWRDIS
  • Supports SMBus providing hot swap & bidirectional buffering
  • LED1 Red LED Blinking indicates SSD active status
  • LED2 Green LED on indicates U.3 SSD power ready
  •
