specifications





  • Build in ASM1351 USB3.1high performance processor

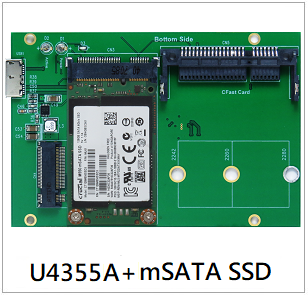

  • Build in Mini PCI-e Female connector

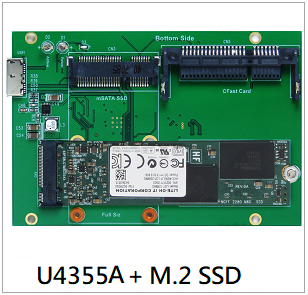

  • Build in M.2 NGFF Female connector

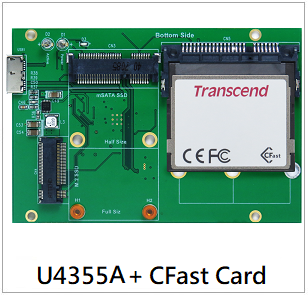

  • Build in CFast Female connector
  • PWM synchronous buck converter Power IC
  • 3A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • D1 Red LED Blinking indicates SSD active status
  • D2 Red LED on indicates CFast, mSATA, M.2 Power ready



support storage device

CB963Fx9





Application

Application



Application

Application
