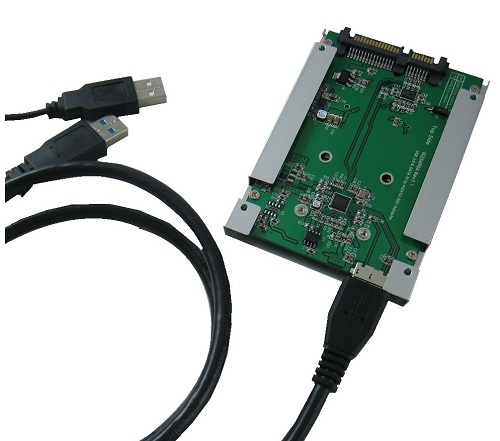

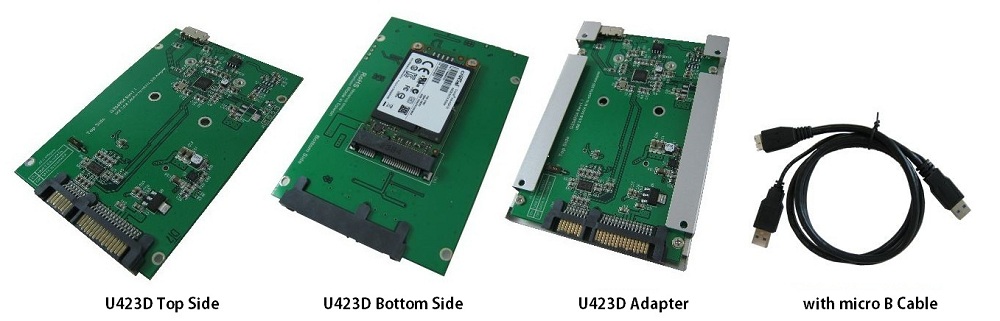

U423D is an economical 2.5" SSD. It uses 2.5" ultra-lightweight aluminum material shell, provide the mSATA SSD converted to USB 3.0 or SATA 6Gb/s interface, containing a mini PCI-e connector and two -- USB 3.0 connector and SATA 7+15pin connector to the host. After assembly is completed, it is 2.5" SSD, or USB to SATA external enclosure. It can be normal operation in a variety of operating systems such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux,, Unix, etc. .

U423D adapter allows mSATA SSD as a system disk to start the operating system directly, without having to install any drivers.

• Compliant with ATA revision 3.0 Standard
• Compliant with USB3.0 Specification Revision 1.0

• Support UASP Protocol Specification Revision 1.0
• To Host – SATA 7+15pin connector
• To Host – USB 3.0 Micro B type female connector
• Device – Mini PCI-e 52pin connector

mSATA SSD Form Factor as below:
Full Size: 50.95 mm (L) x 30mm (W)
Half Size: 26.8 mm (L) x 30 mm (W)

1. Notebook

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

• Intel 525, 313, 311, 310 Series mSATA SSD
• Samsung PM800, PM810, PM830 Series mSATA SSD
• Toshiba HG,SG2 Series mSATA SSD
• Sandisk Gen 2 pSSD, P4 Meteor5 Series mSATA SSD
• Any compatible mSATA SSD Card

Test repoort Download :

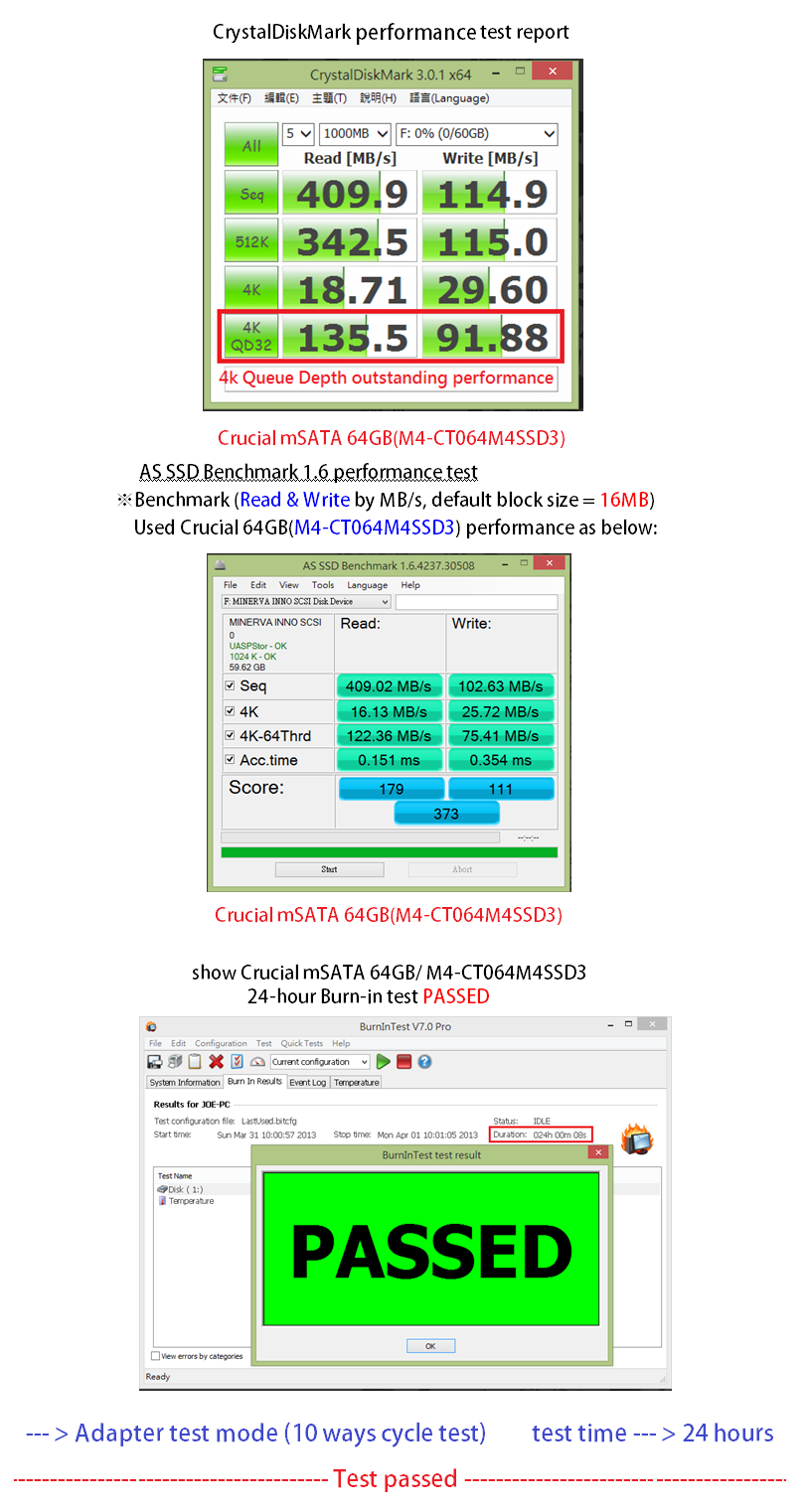

U423D with Crucial mSATA 64GB M4 CT064M4SSD3 performance and burn in test report

U423D + Crucial mSATA 64GB M4 CT064M4SSD3 效能及老化測試 (繁體中文)

U423D + Crucial mSATA 64GB M4 CT064M4SSD3 效能及老化测试 (简体中文)

Datasheet Download :

    U423D.PDF

    U423D(繁體中文).PDF

    U423D(简体中文).PDF
