Datasheet
Test report - USB 3.1 to mSATA SSD with Type C to Micro B cable

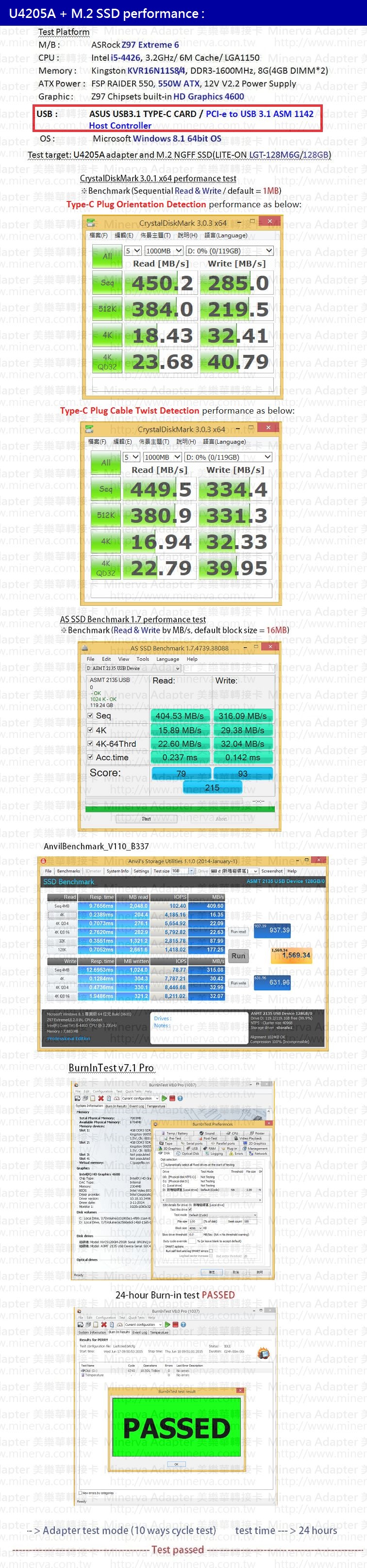

Test report - USB 3.1 to M.2 SSD with Type C to Micro B type cable
Test report - USB 3.1 to M.2 SSD with A Type to Micro B type cable

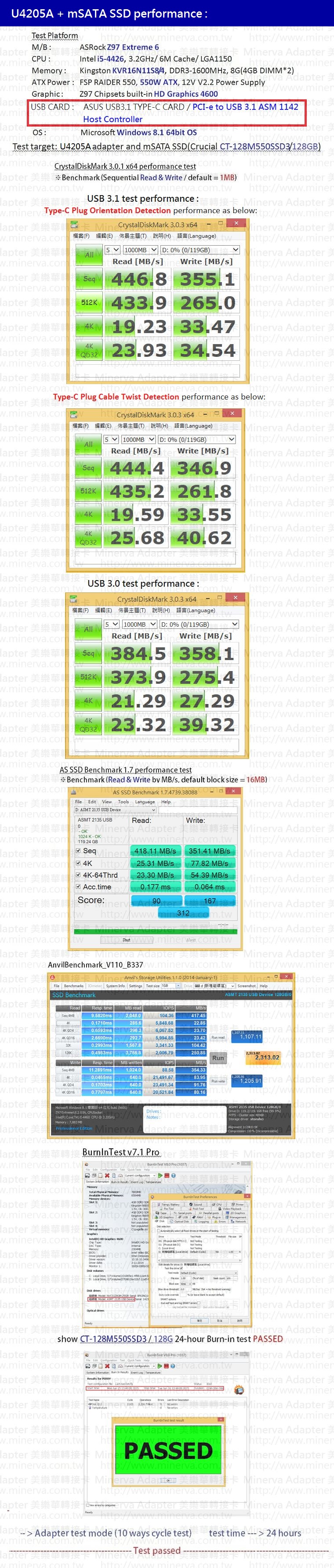

Test report - USB 3.0 to mSATA SSD
Assembly guide
Accessory Package

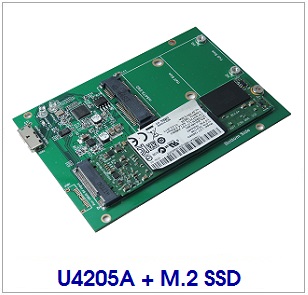

- M.2 SSD (SATA I/F) to USB 3.1 /10Gbps

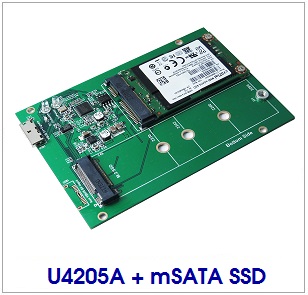

- mSATA SSD to USB 3.1 / 10Gpbs
- Build in USB 3.1Micro B-type connector
- Build in M.2 (NGFF) B-key Female connector
- Build in Mini PCI-e (mSATA) Female connector

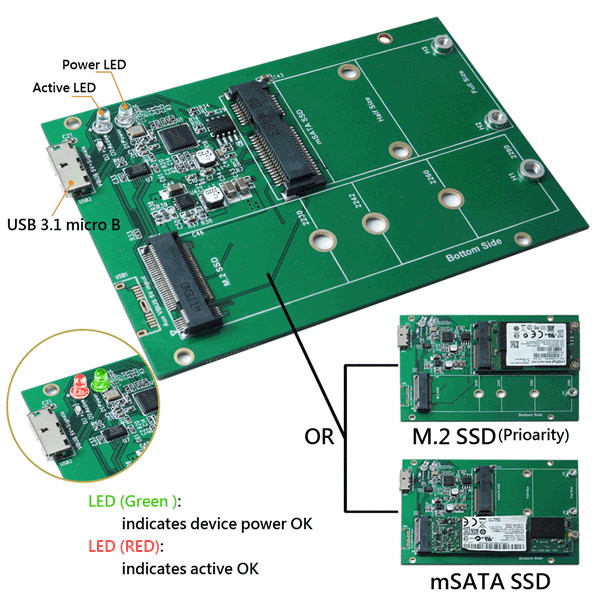

- D1 LED on indicates M.2 / mSATA SSD power OK
- D2 LED on indicates USB 3.1 for SSD active status
- D3 LED on indicates M.2 / mSATA SSD active status
- Support SATA Reversion 3.2
- PCI Express M.2 Spec. Revision 0.7, Version 1.0
- Universal Serial Bus 3.1 Specification
- PWM synchronous buck converter Power IC for M.2 or mSATA SSD Device
- 3A maximum output current
 SSD & SATA to mSATA SSD Adapter - SATA to M.2 (NGFF) & mSATA SSD Adapter - S2083A - Minerva - 2 in 1 - 15.jpg)
