Datasheet

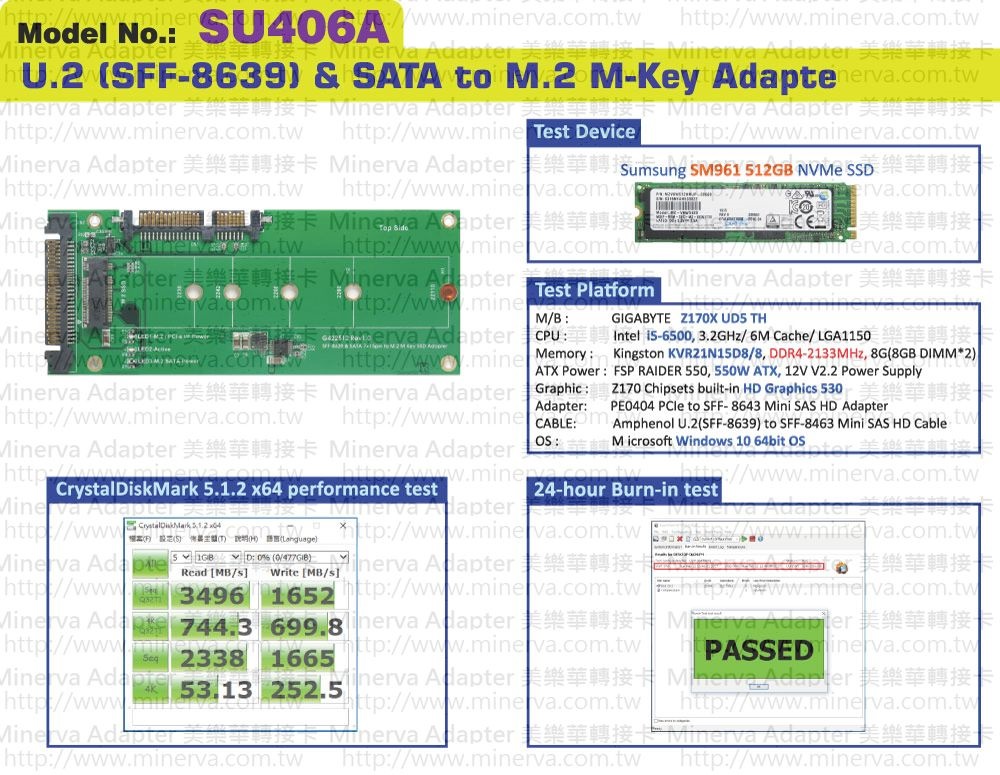

Test report-Samsung SM961

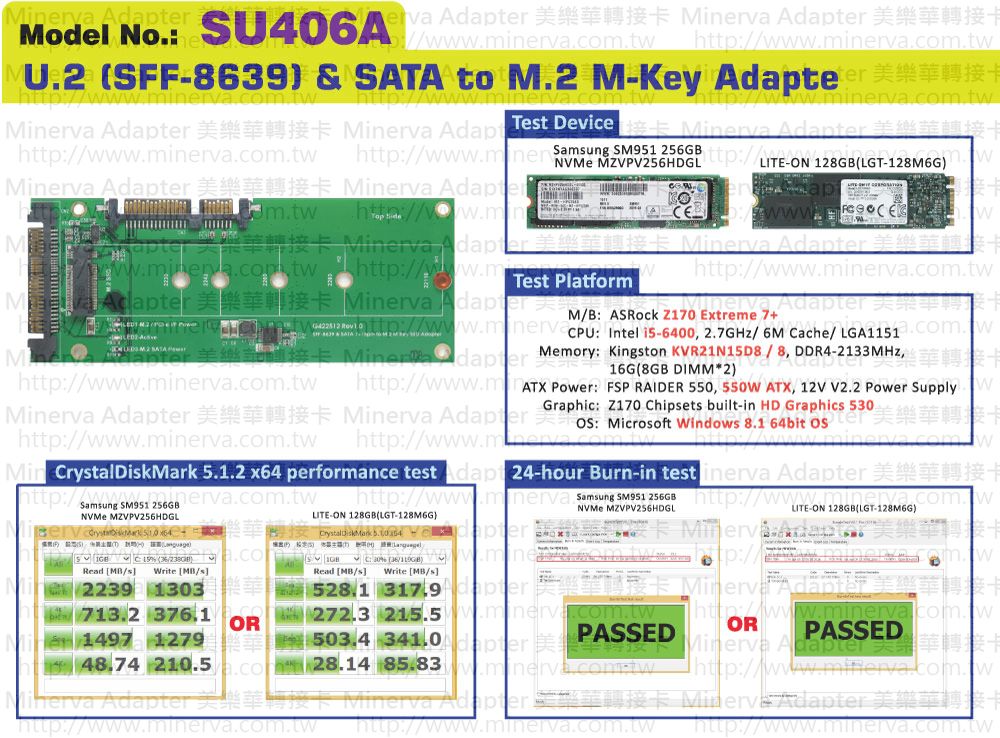

Test report-SATA I/F & PCIe x4

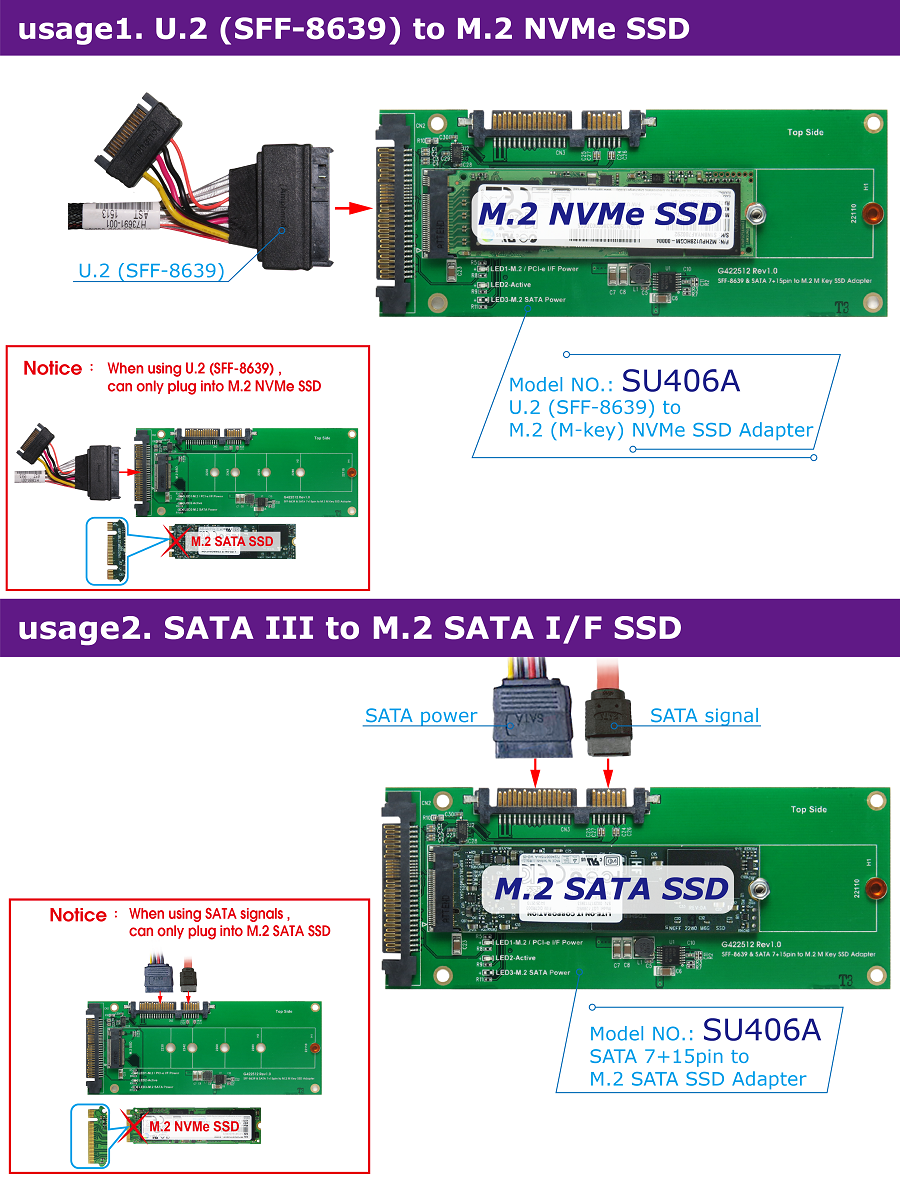

- M.2 NVMe to U.2(SFF-8639) convert
- M.2 SATA to SATA 22pin convert

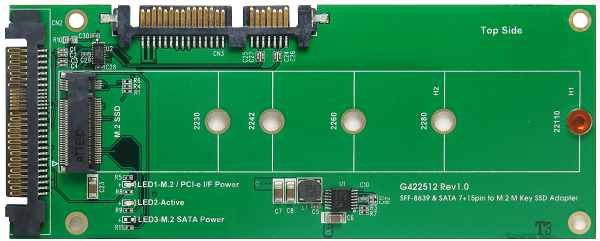

- Build in M.2 M-key Female connector
- Build in SFF-8639 connector, pin-out defined by PCIe
- PWM synchronous buck converter Power IC
- 4A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- LED1 RED LED Blinking indicates M.2 SSD active status
- LED2 Green LED on indicates M.2 NVMe SSD power ready
- LED3 Green LED on indicates M.2 SATA SSD power ready
