- Build in ASM1092R high performance processor
- Fully hardware-accelerated RAID Engine
- Supports RAID levels: 0 / 1 / JBOD
- Build in Mini PCI-e Female connector x2
- Build in M.2 NGFF Female connector x2
- PWM synchronous buck converter Power IC x2
3A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
 SSD.jpg){kind=small}
 SSD & SATA to mSATA SSD Adapter - SATA to M.2 (NGFF) & mSATA SSD Adapter - S2083A - Minerva - 2 in 1 - 15.jpg)
- Intel 530 Series M.2 SSD & compatible Storage
- Sandisk X110 M.2 SSD & compatible Storage
- Micron M500 Series M.2 SSD & compatible Storage
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Datasheet Download :
R2106E.PDF
Test repoort Download :

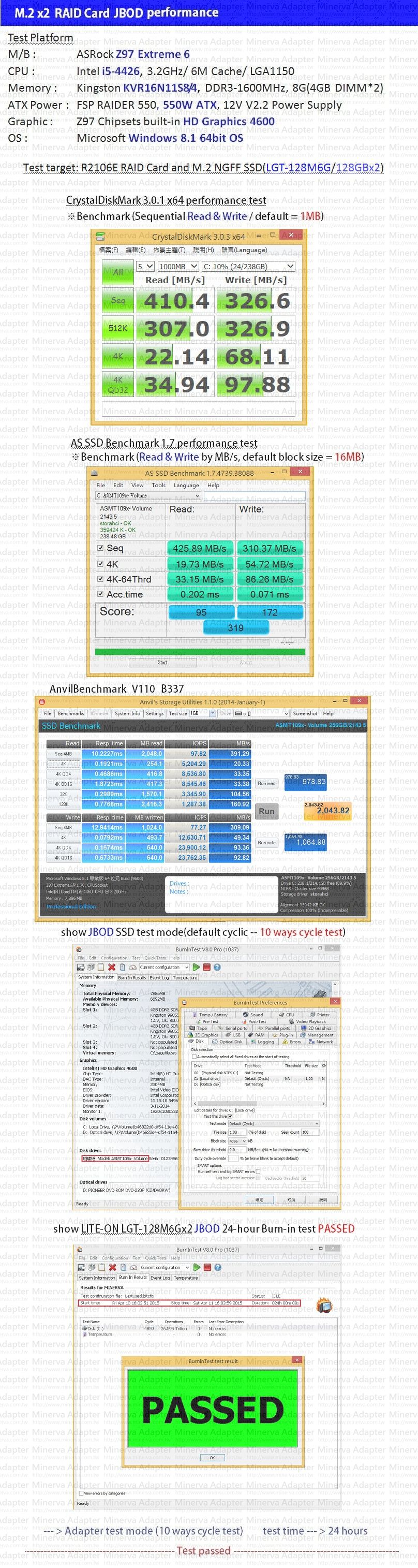

R2106E M.2 x2 JBOD performance and burn in test report

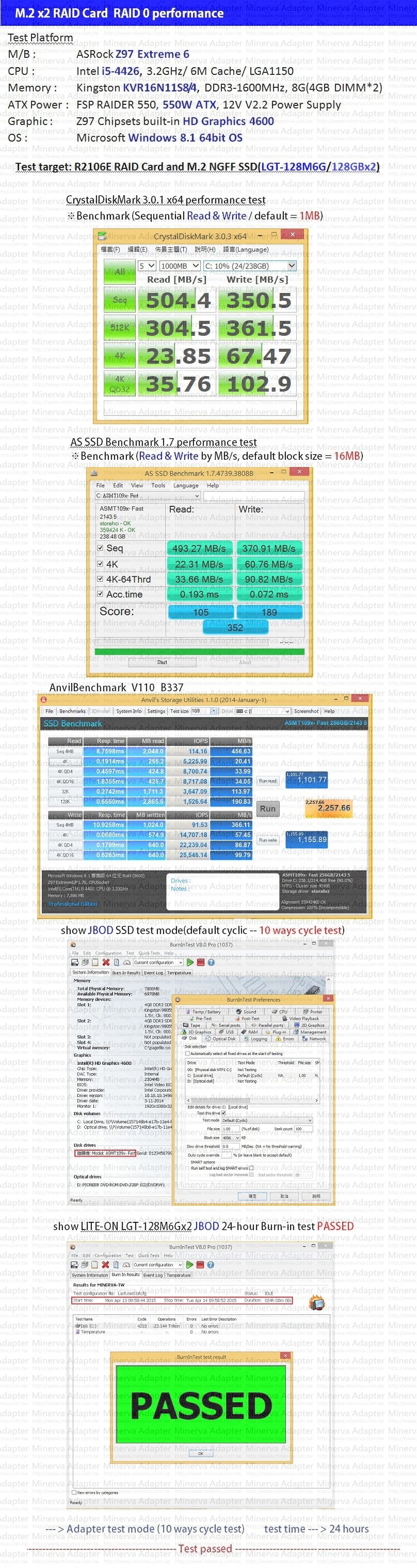

R2106E M.2 x2 RAID 0 performance and burn in test report

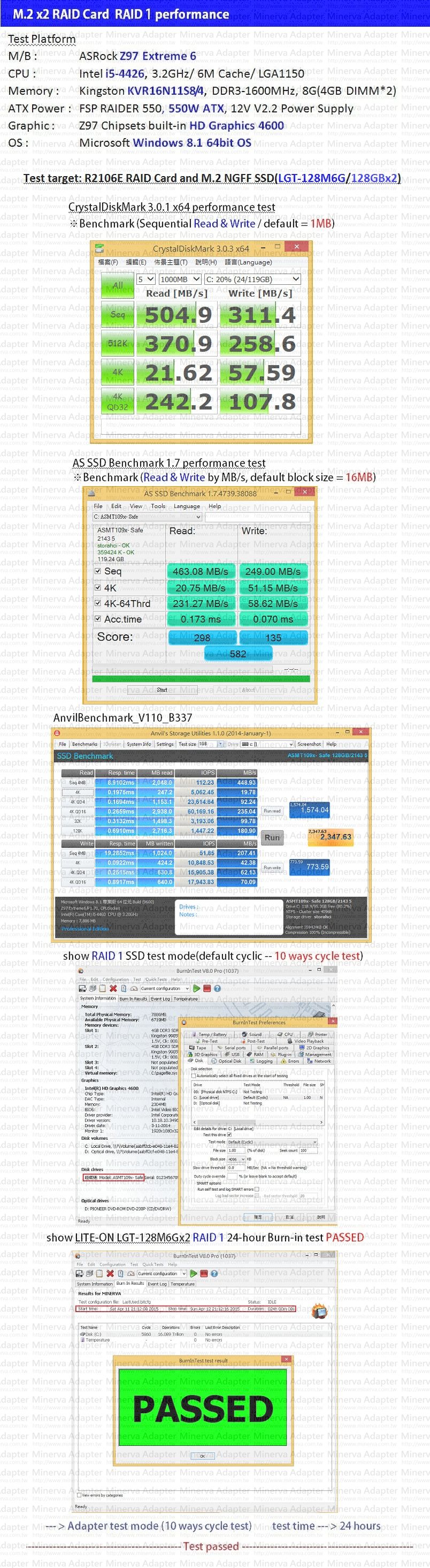

R2106E M.2 x2 RAID 1 performance and burn in test report

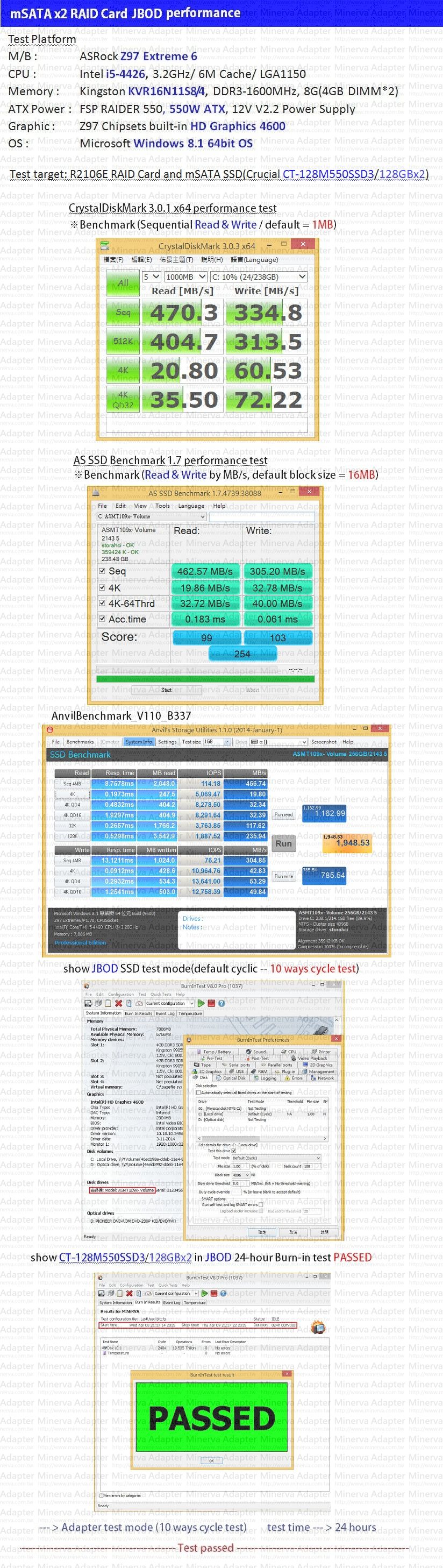

R2106E mSATA x2 JBOD performance and burn in test report

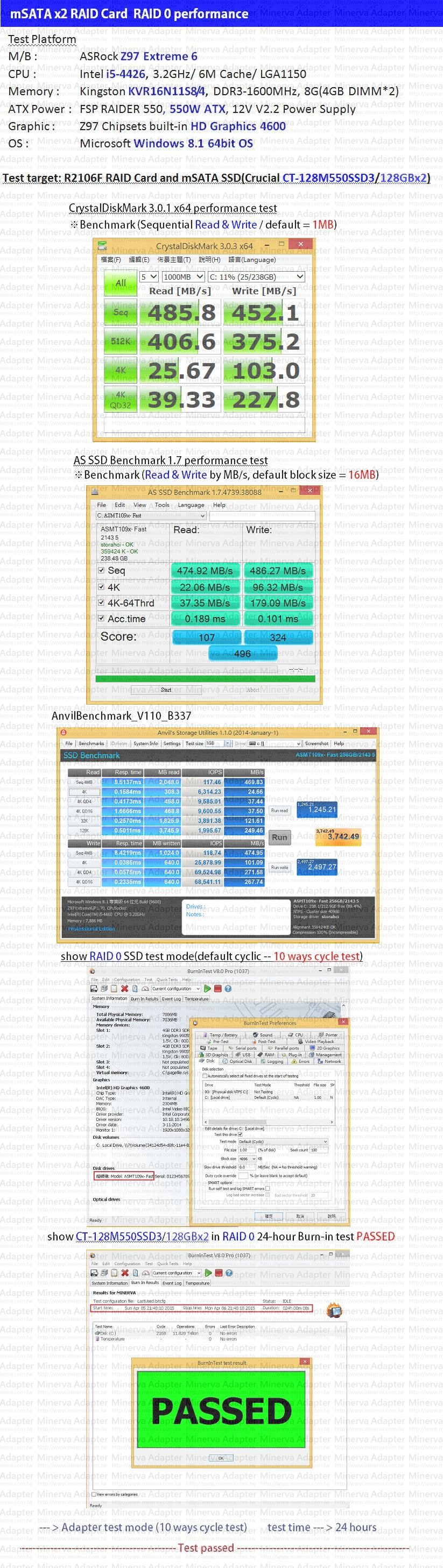

R2106E mSATA x2 RAID 0 performance and burn in test report

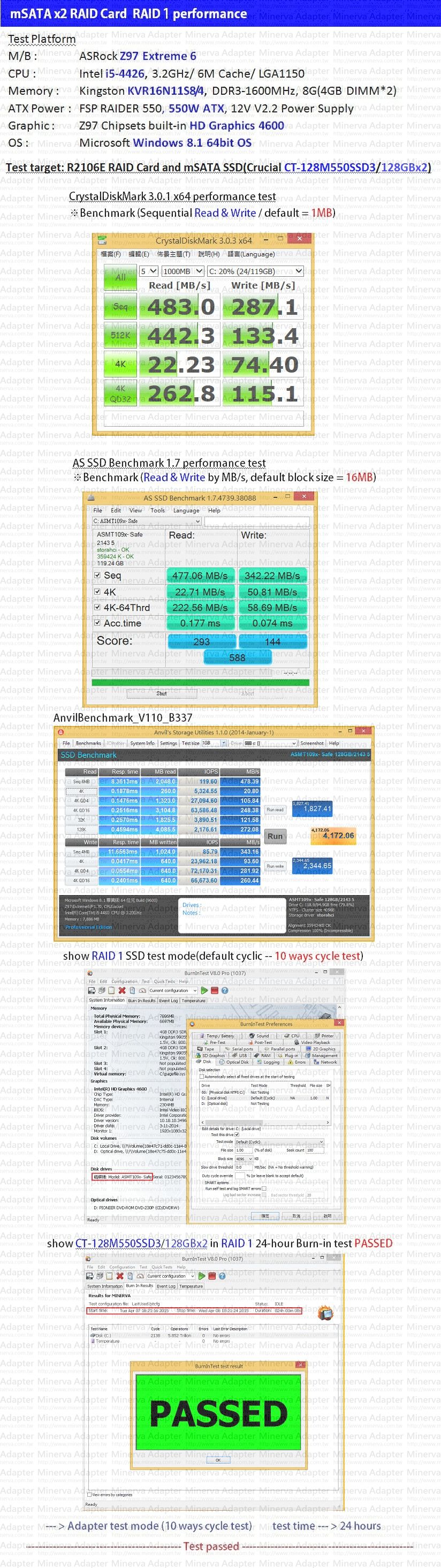

R2106E mSATA x2 RAID 1 performance and burn in test report
