Datasheet

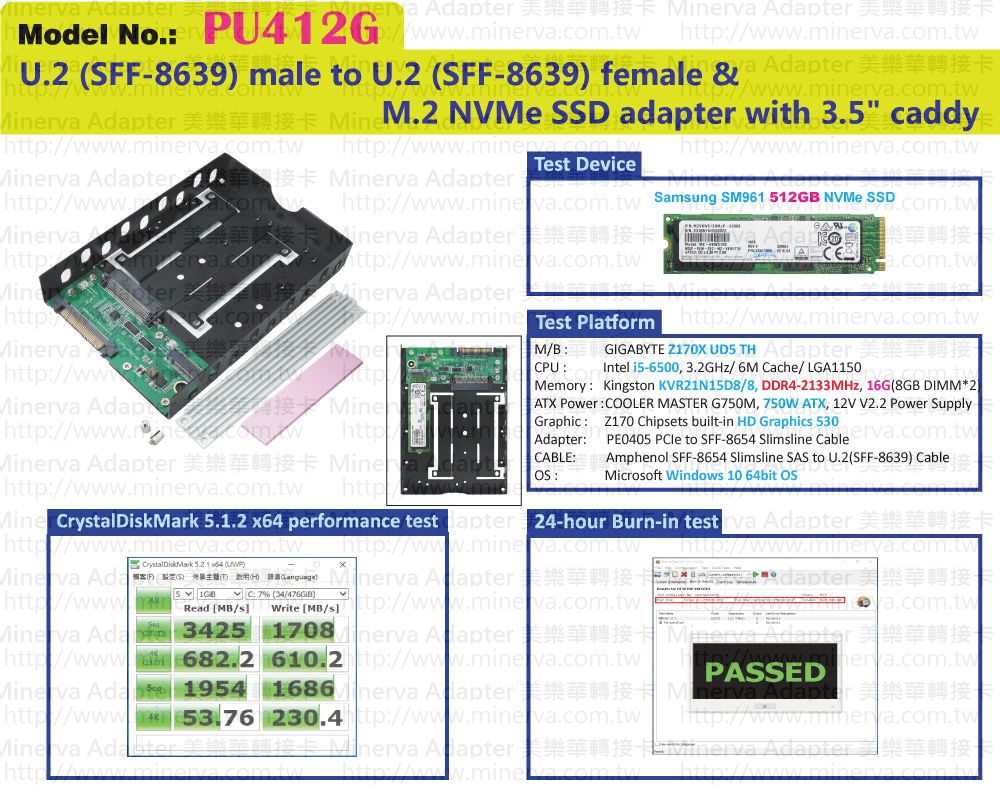

Test report with SM961 2280 M.2 NVMe SSD

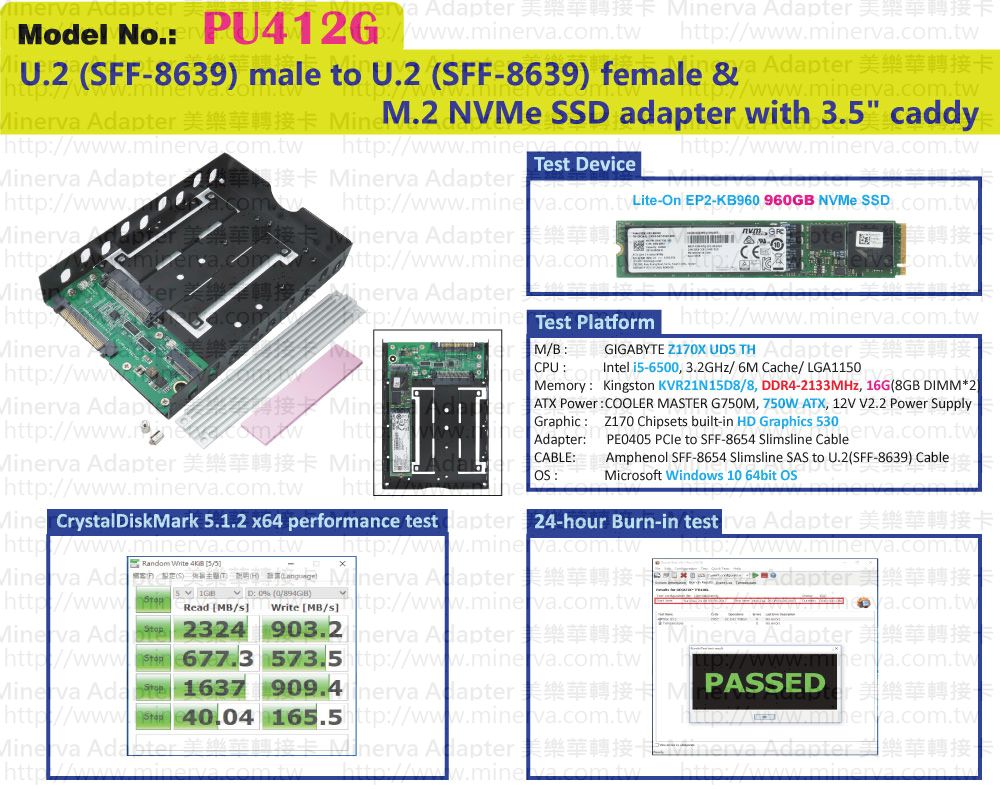

Test report with LITE ON 22110 M.2 NVMe SSD

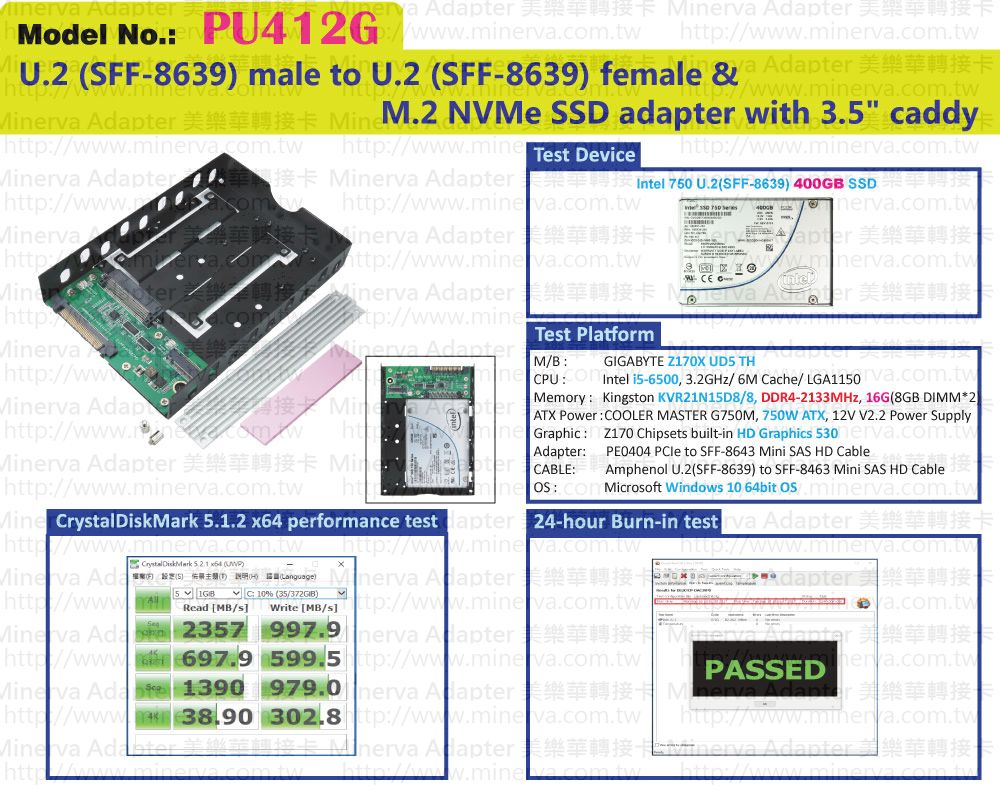

Test report with Intel 750 Series U.2 NVMe SSD
Test report with PU3401F Adapter & SM961 M.2 NVMe SSD

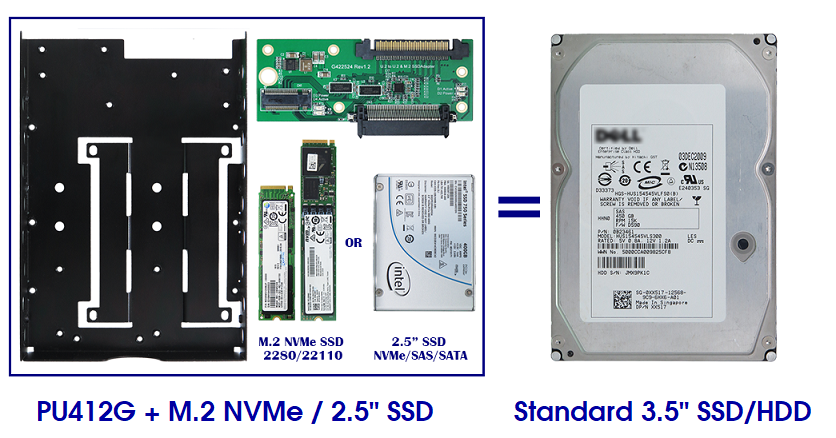

- M.2 NVMe to U.2(SFF-8639) convert
- U.2(SFF-8639) convert
- Build in M.2 M-key Female connector
- Build in SFF-8639 plug & receptacle connector, pin-out defined by PCIe
- PWM synchronous buck converter Power IC for M.2 NMVe SSD
- 4A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- LED1 Green LED on indicates U.2 SSD power ready
- LED2 RED LED Blinking indicates U.2 SSD active status
- LED3 Green LED on indicates M.2 NVMe SSD power ready
- LED4 RED LED Blinking indicates M.2 SSD active status
