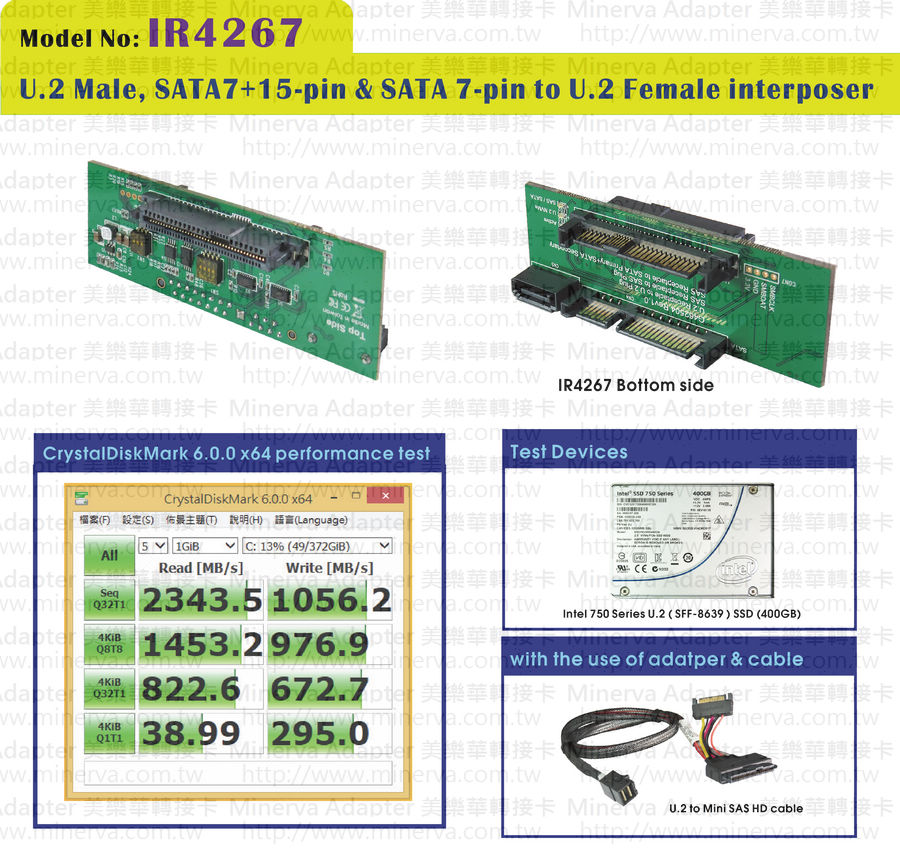

Test report

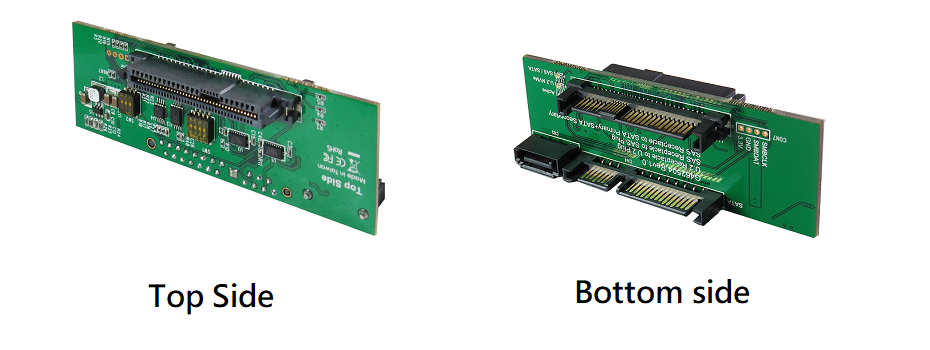

- U.2(SFF-8639) receptacle to U.2(SFF-8639) plug convert
- SAS 3.0(SFF-8680) receptacle to SAS 3.0 (SFF-8680) plug convert
- SAS 3.0(SFF-8680) Primary port to SATA 7+15-pin plug convert
- SAS 3.0(SFF-8680) Second port to SATA 7-pin plug convert

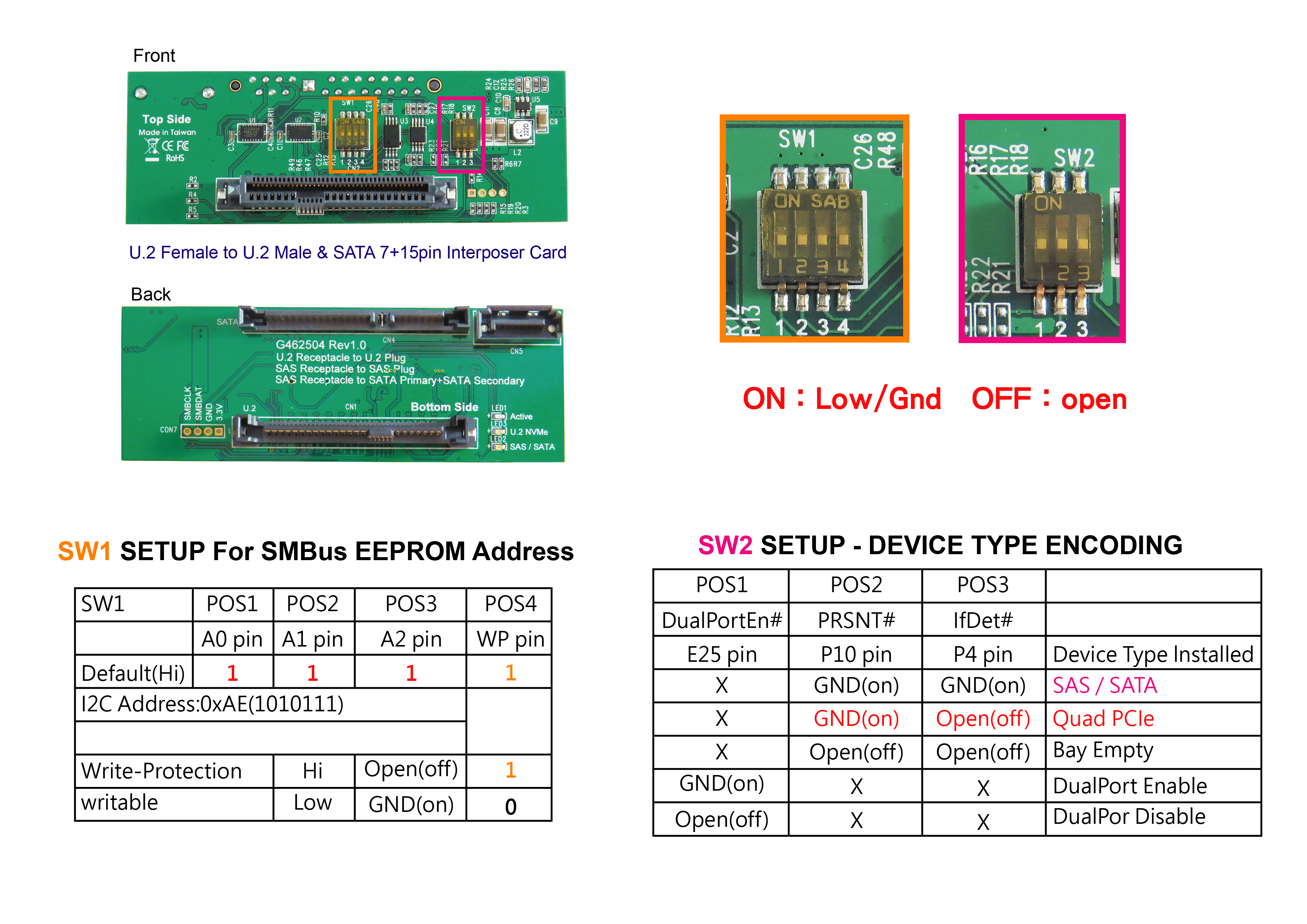

- Build in U.2(SFF-8639) connector
- Build in SFF-8639 connector, pin-out defined by PCI Express
- Supports 3.3V SMB_CLK
- Supports 3.3V SMB_DATA
- SMBUS Isolated & repeater
- Buind in SMBUS 256KB EEPROM
- LED1 RED LED Blinking indicates SSD active status
- LED2 Green LED on indicates SAS/SATA SSD power ready
- LED3 Green LED on indicates U.2 NVMe SSD power ready
