Datasheet
Test report with SFF-8611 to SFF-8611 Cable
Test report with SFF-8643 to SFF-8611 Cable
Test report with SFF-8654 to SFF-8611 Cable
2D drawing
Host : PE0412

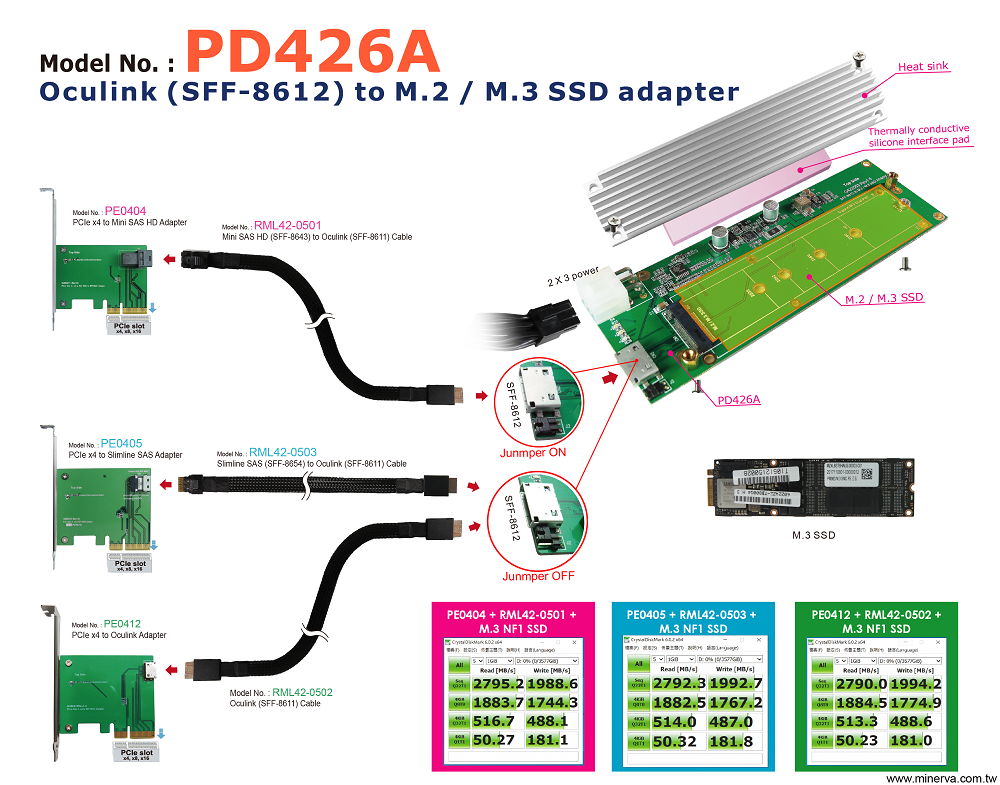

Test report with M.3 NF1 SSD
Host : PE2404
Test report with M.3 NF1 SSD

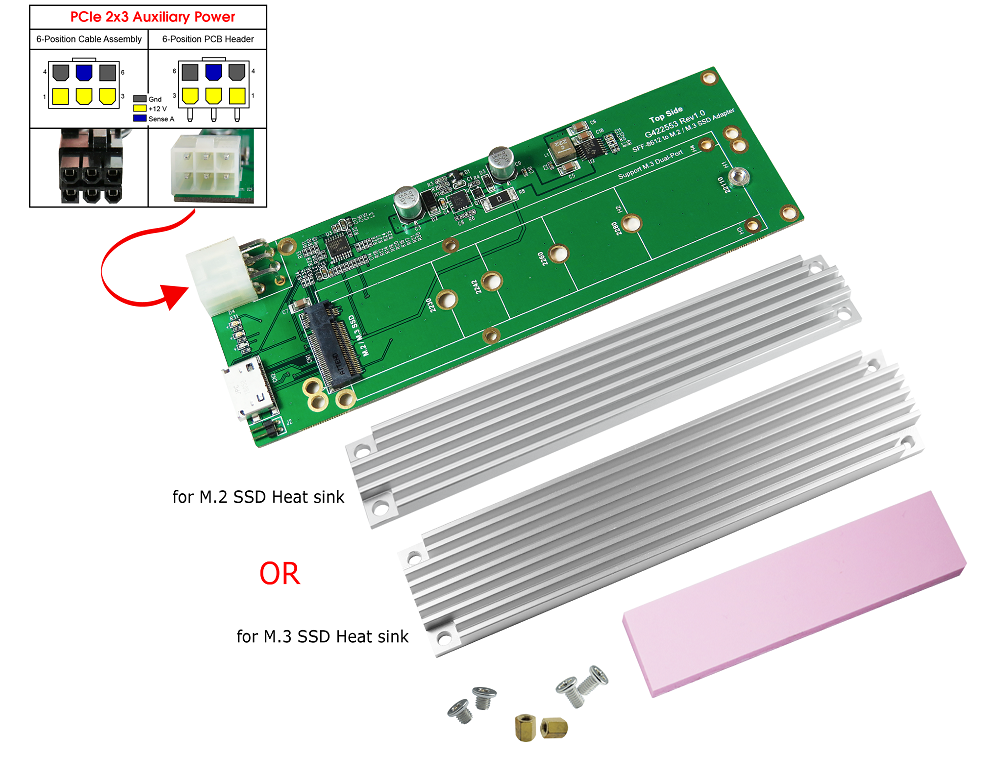

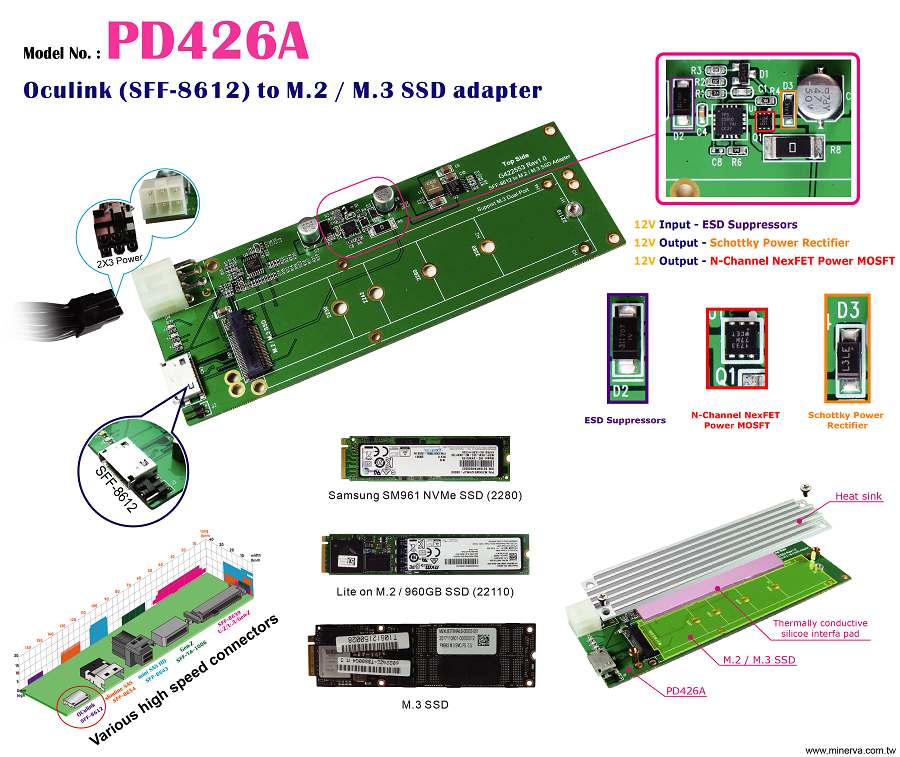

- Build in Hot Plug power IC protects M.2, M.3 SSD

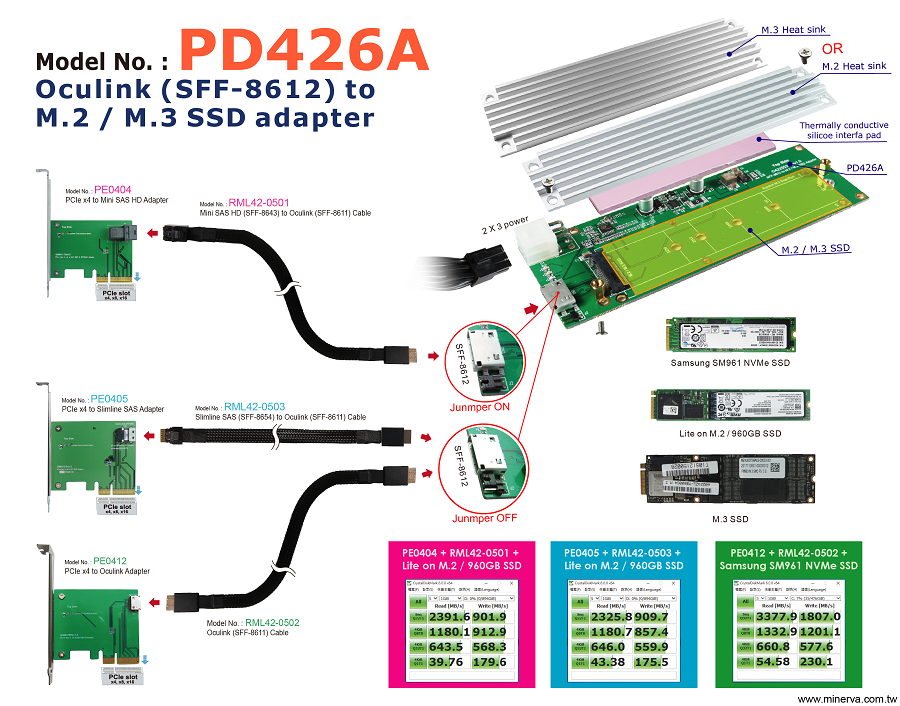

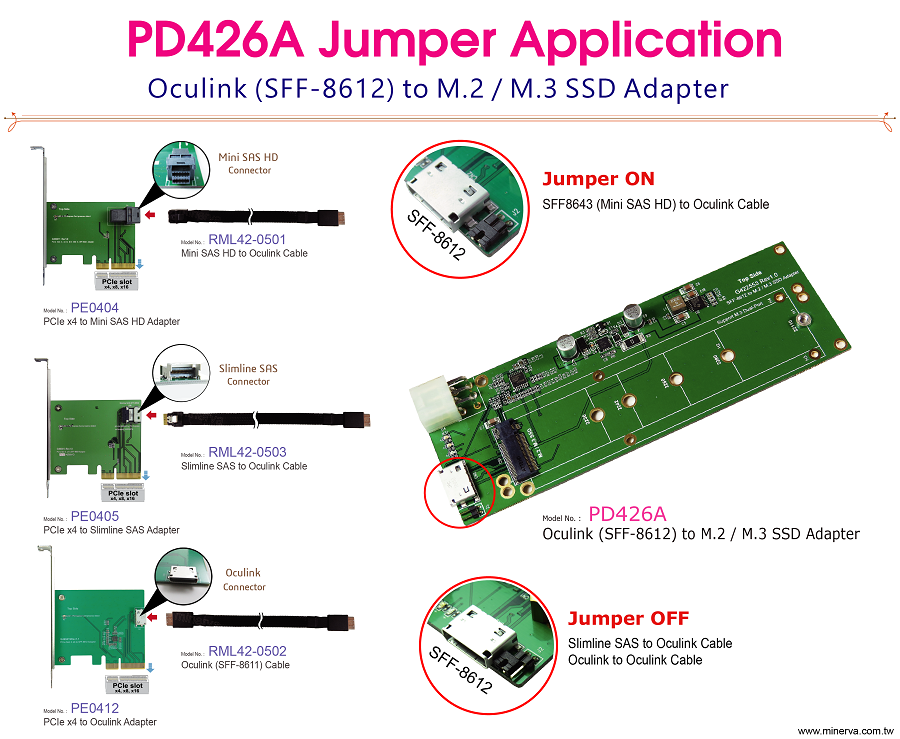

- SFF-8612 OCulink to M.2, M.3 convert
- Build in SFF-8612 connector, pin-out defined by PCIe
- Build in M.2 M-key connector, pin-out defined by PCIe
- LED D4 Red LED Blinking indicates SSD active status
- LED D5 Green LED on M.2 SSD power ready
- LED 4 Green LED on indicates M.3 SSD power ready
