CB963Fx9





CB963Fx9



specifications

PDF

Datasheet

PDF

Test report - with Intel P3700 SSD

PDF

Test report - with U.3 SSD Adapter & Samsung 512G M.2 SSD









specifications

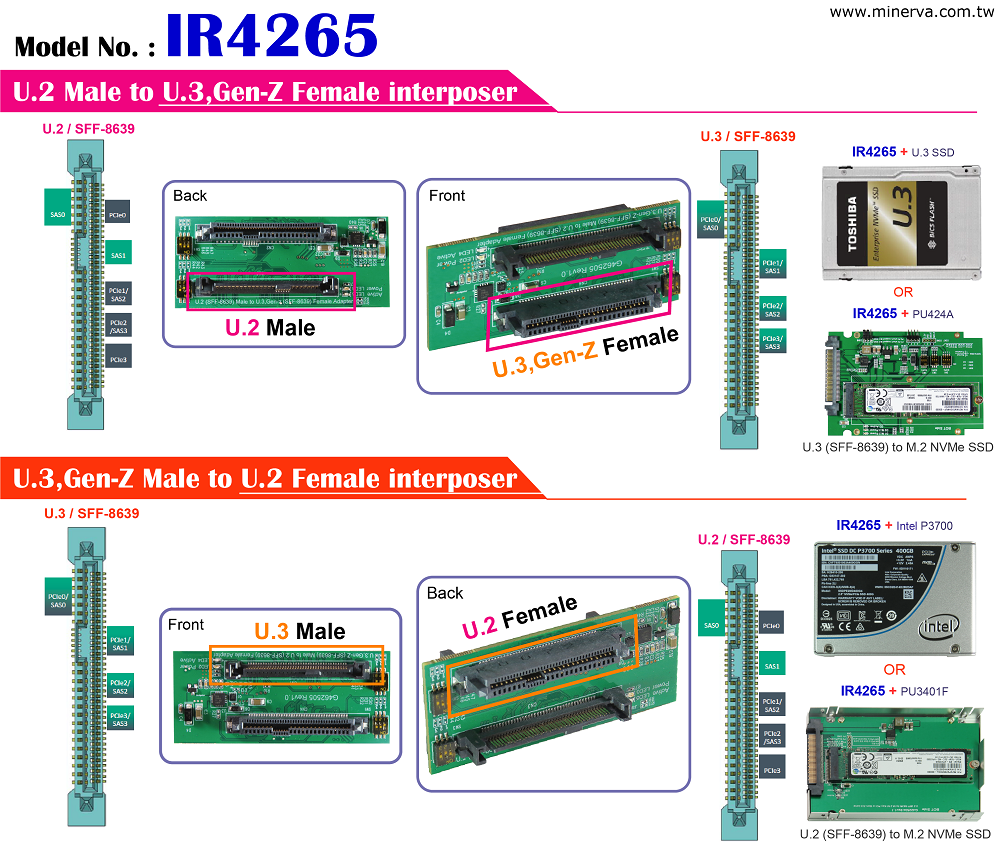

  • U.3, Gen-Z(SFF-8639) receptacle to U.2(SFF-8639) plug convert
  • U.2(SFF-8639) receptacle to U.3, Gen-Z(SFF-8639) plug convert

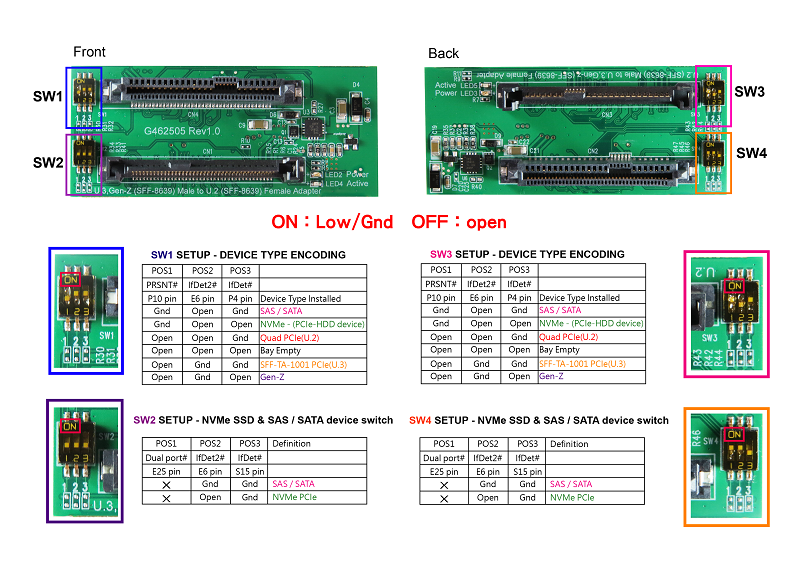

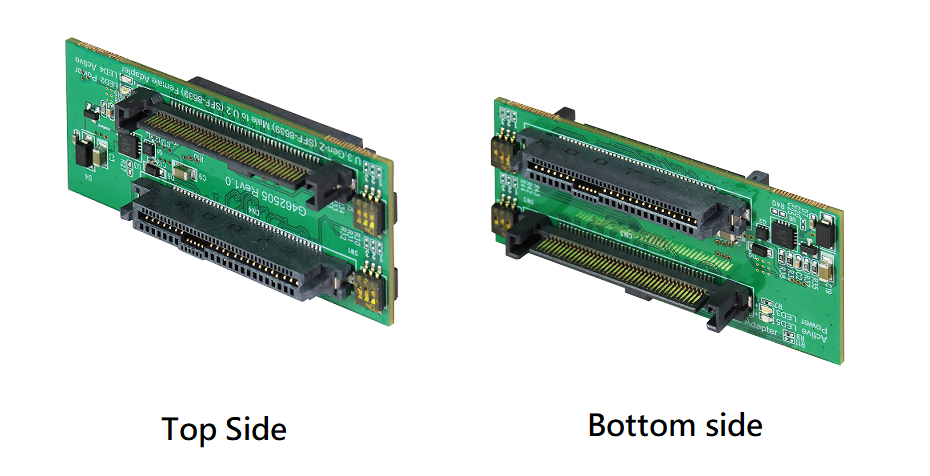

  • Built-in SFF-8639 connector, pin-out defined by PCI Express
  • Supports 3.3V SMB_CLK
  • Supports 3.3V SMB_DATA
  • Supports PWRDIS
  • 12V Hot Plug eFuse protection circuit
  • 3.3Vaux Hot Plug eFuse protection circuit
  • LED4, LED5 Red LED Blinking indicates SSD active status
  • LED2, LED3 Green LED on indicates power ready
